Technical Overview
Overview & Function

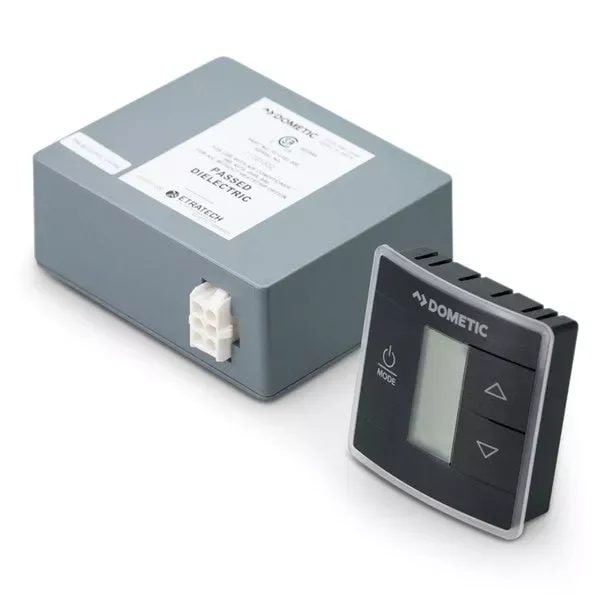

The Dometic 3316230.714 single-zone CT thermostat with kit components refreshes the wall-control side of compatible Dometic climate systems. Worn buttons, dim displays, and drifting temperature readings all trace to this control. The suffix-specific kit keeps every included piece on the same engineering revision.
Fitment & Compatibility
This control fits single-zone CT systems documenting 3316230.714. Read the complete number including the .714 suffix on the old control back plate, because suffixes distinguish kit contents. It mounts in the standard wall location on original low-voltage wiring.
Technical Construction & Specifications
The thermostat uses CT sensing and display electronics with OEM calibration, supplied alongside its kit-matched components. Communication with the control box runs over the factory bus. Faceplate finish and button layout follow the CT family design.
Installation & Maintenance Guidelines
Power down the system first. Photograph wire landings, transfer them to the new 3316230.714 per the terminal map, and mount it level for accurate sensing. Power up, configure zone options, and verify each mode responds correctly.
